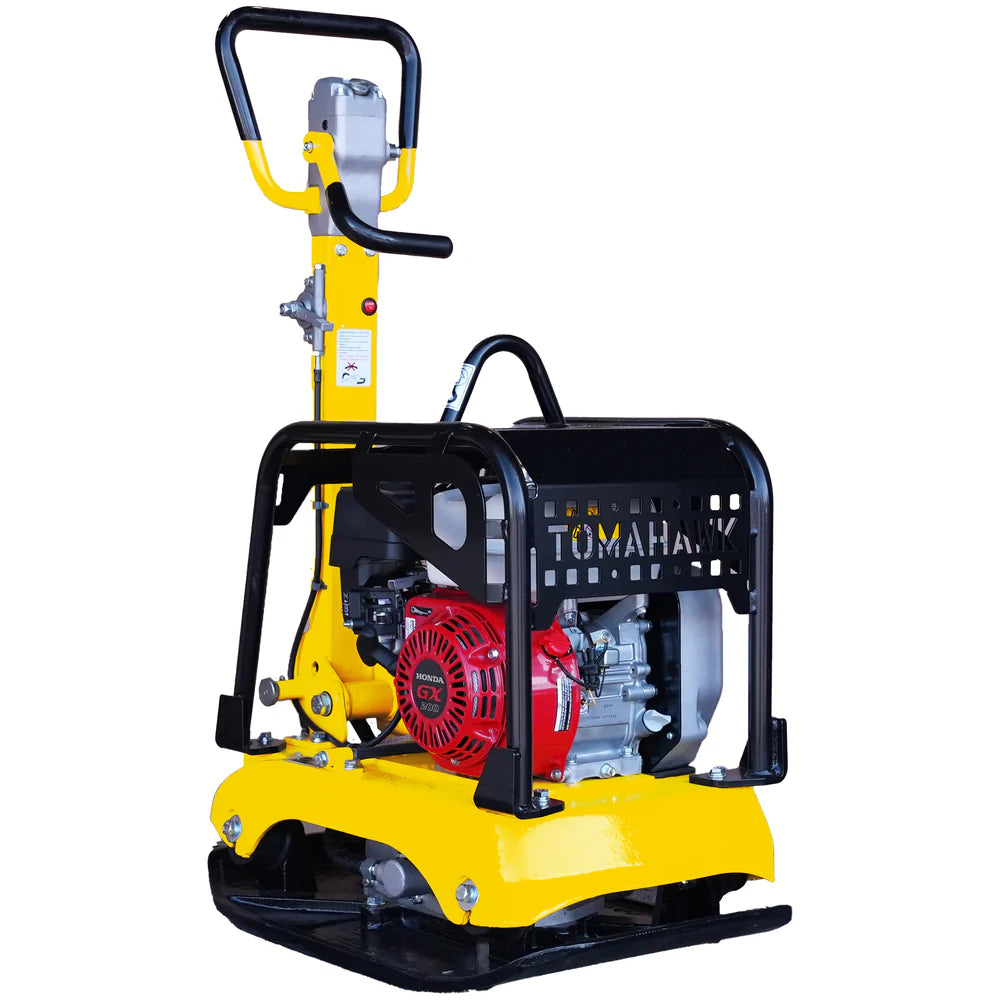

Tomahawk 6.5 HP Honda Reverse Hydraulic Plate Compactor TPC175H

Compact With Confidence

Take control of your compaction tasks with Tomahawk Reverse Plate Compactors. Engineered for power and reliability, these compactors are perfect for demanding construction projects, including foundations, roadwork, and landscaping. The hydraulic drive allows for smooth forward and reverse operation, ensuring effortless maneuverability even in confined spaces. Built to endure the harshest conditions, the TPC175H features a cast aluminum belt guard to protect engine components, a durable lifting hook for easy transport, and a rugged frame designed to withstand heavy use. The Honda GX200 engine provides consistent, reliable power, while the optional wheel kit adds convenience for transportation across job sites.

Features

• Hydraulic Reverse Drive: Full-speed forward and reverse operation for exceptional control and maneuverability.
• Honda GX200 Engine: Reliable 6.5 HP engine delivers consistent performance for professional-grade compaction.
• High Compaction Force: Generates 6,100 lbs/ft² (27 kN) of compaction force for optimal soil and material density.
• Durable Construction: Rugged frame and cast aluminum housing ensure longevity, even in the harshest job site conditions.
• Protective Features: Cast aluminum belt guard keeps debris out of engine components, extending machine life.

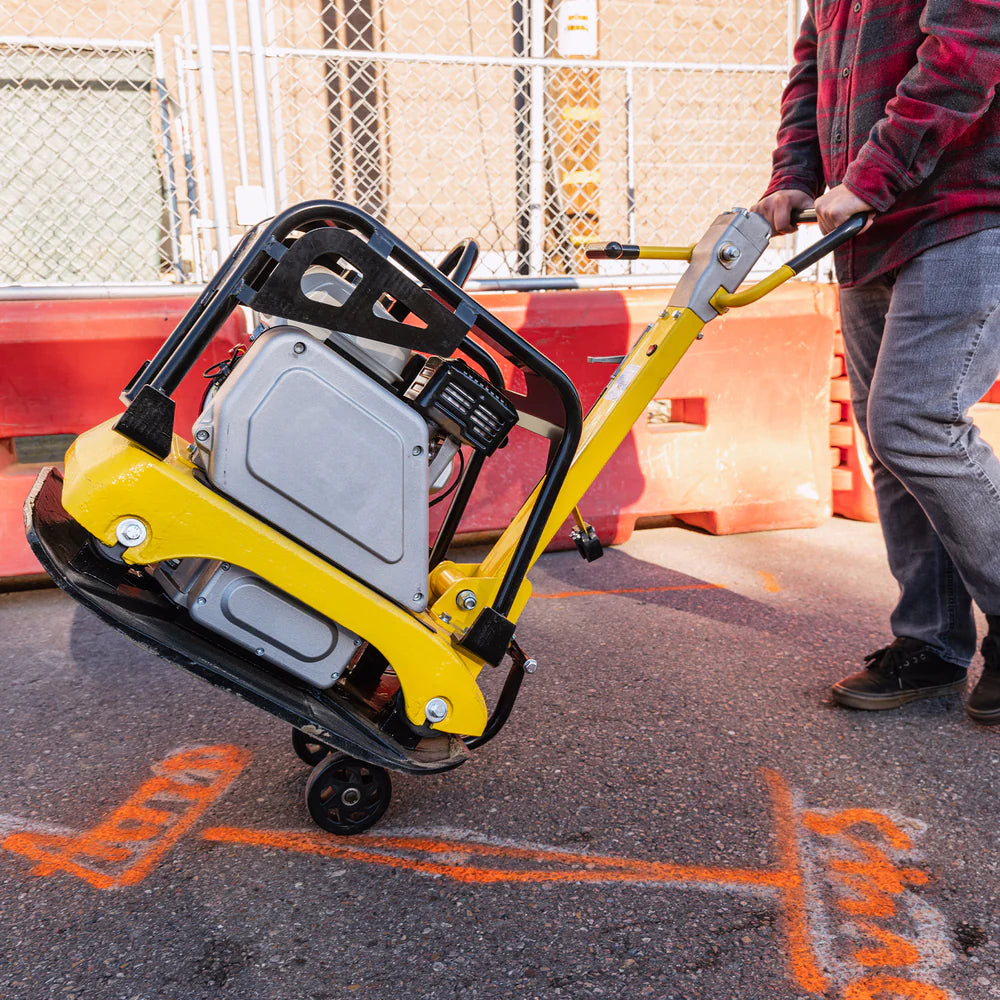

• Optional Wheel Kit: Simplifies transportation for enhanced convenience.
• Travel Speed: Moves at up to 65 feet per minute, making quick work of large areas.
• Ergonomic Design: Easy to operate, reducing fatigue during extended use.

Specifications

• Model: TPC175H
• Engine: Honda GX200 (6.5 HP)
• Compaction Force: 6,100 lbs/ft² (27 kN / 2750 kgf)
• Plate Size: 17” x 28” (43.2 cm x 71.1 cm)
• Travel Speed: 65 ft/min (19.8 m/min)
• Vibration Frequency: 90 Hz
• Engine Oil: 10W-30
• Oil Capacity: 0.63 quarts (0.6 liters)
• Weight: 363 lbs (165 kg)
• Optional Features: Wheel kit for transportation

Applications

• Retaining Walls
• Footings and Foundation Projects
• Landscapes and Hardscapes
• Patchwork on Asphalt
• Pipeline Applications
• Road Repair and Trenchwork
• Backfill Pools, Parks, Cemeteries, and Golf Courses
• Cohesive Soils and Granular Soils
• Sticky Soils - such as clay or silt
• Gravel, sand, or mixed soils
• Base, Subbase, Subgrade, Subsoil

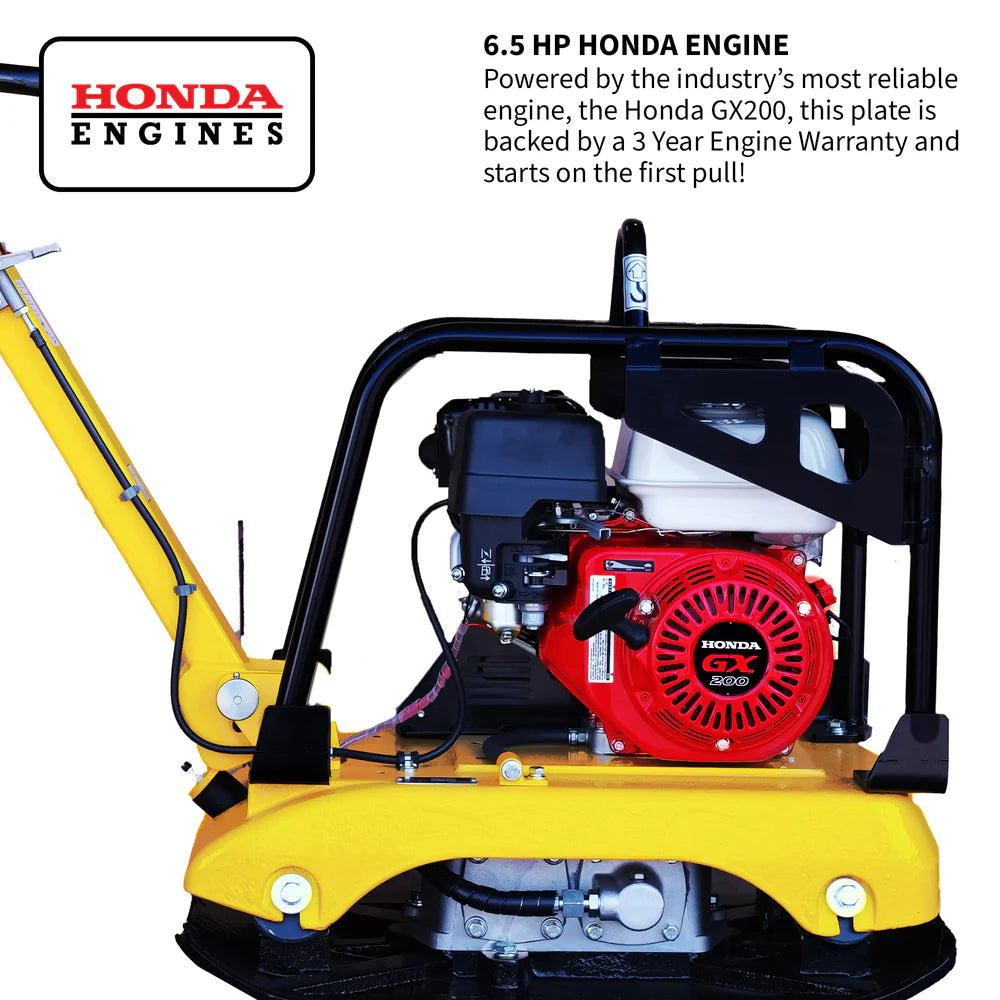

6.5HP HONDA GX200 ENGINE

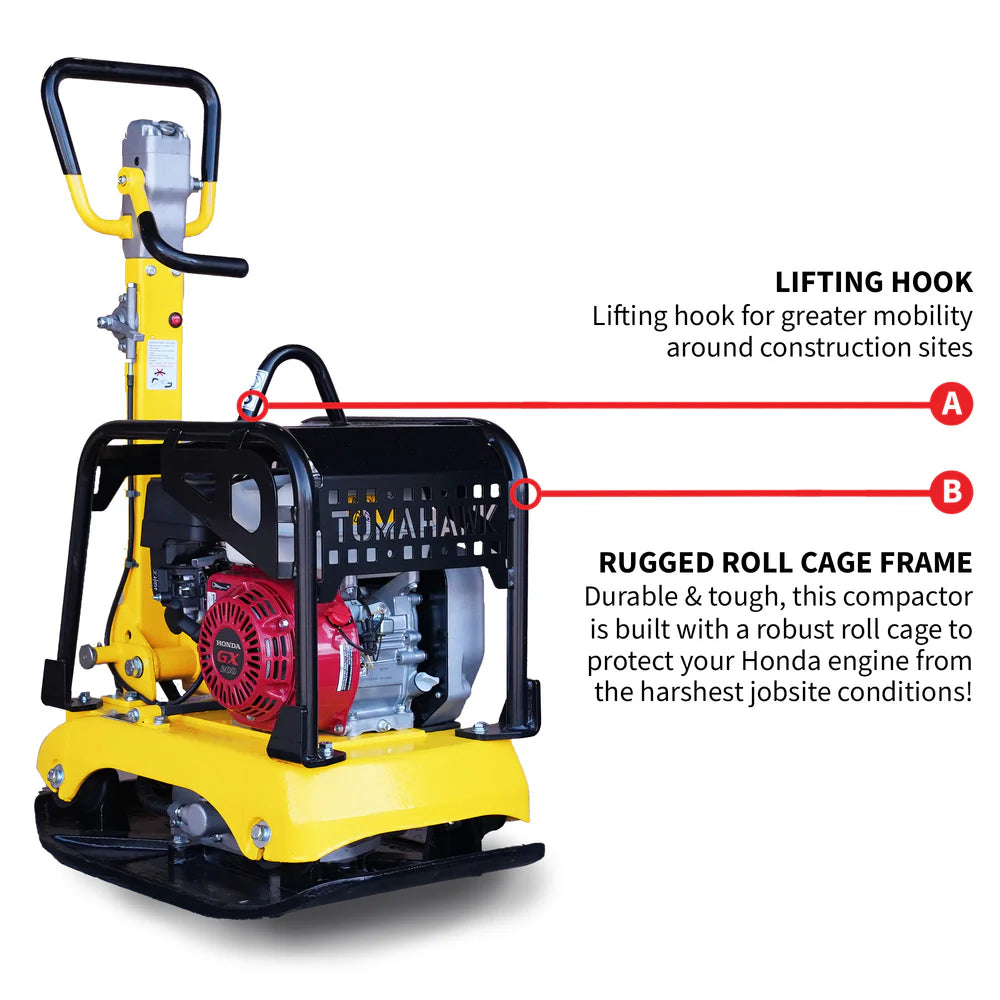

Durable and tough, this compactor is built with a robust roll cage and larger vibration isolation mounts to protect your Honda engine from the harshest jobsite conditions - making it perfect for professionals, contractors and do-it-yourselfers alike.

ACHIEVE 100% COMPACTION

Use on for cohesive soils such as subbase, clay silt, clay, or mixed soils - for projects involving landscapes, hardscapes, road repair, and more.

COMPACTION OF 6,100 LBS/FT

Achieving a 100% Compaction Rating on cohesive and granular soils, up to 20 inches, this plate compactor is perfect for professional applications requiring nuclear density testing and field compaction tests.

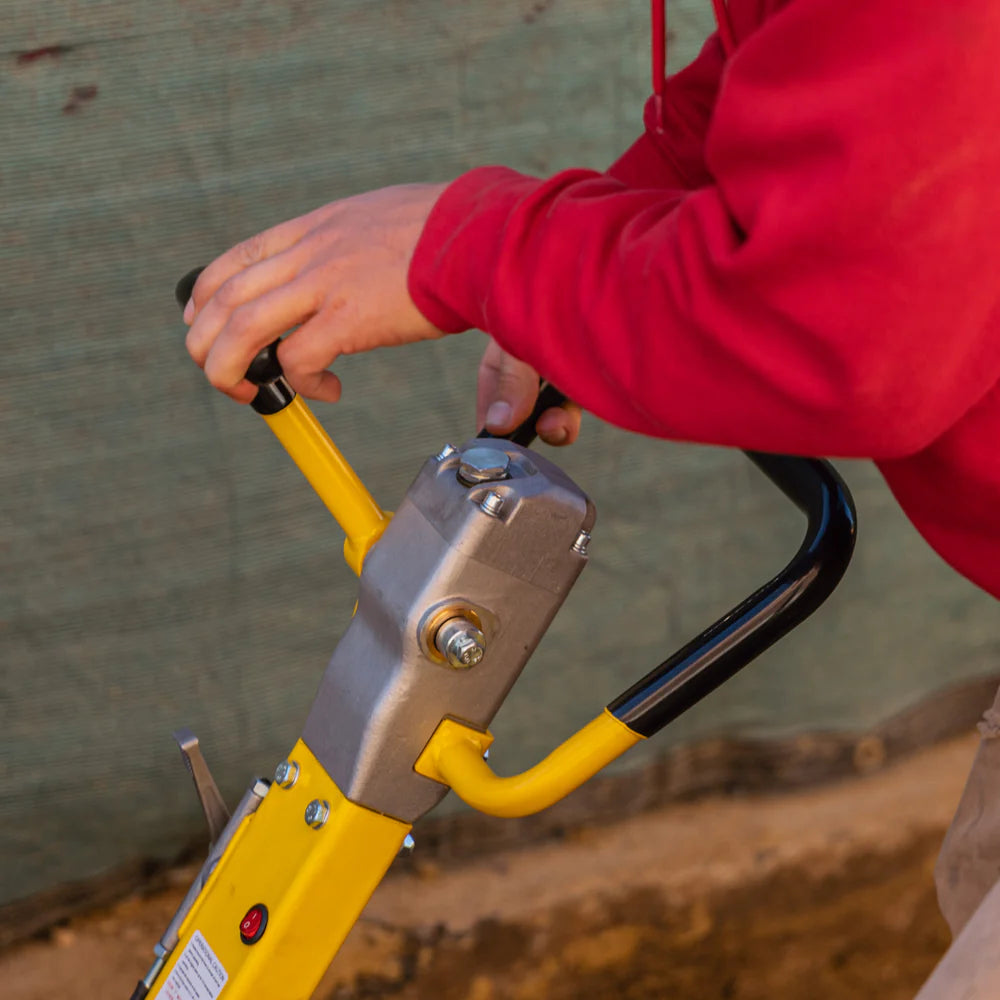

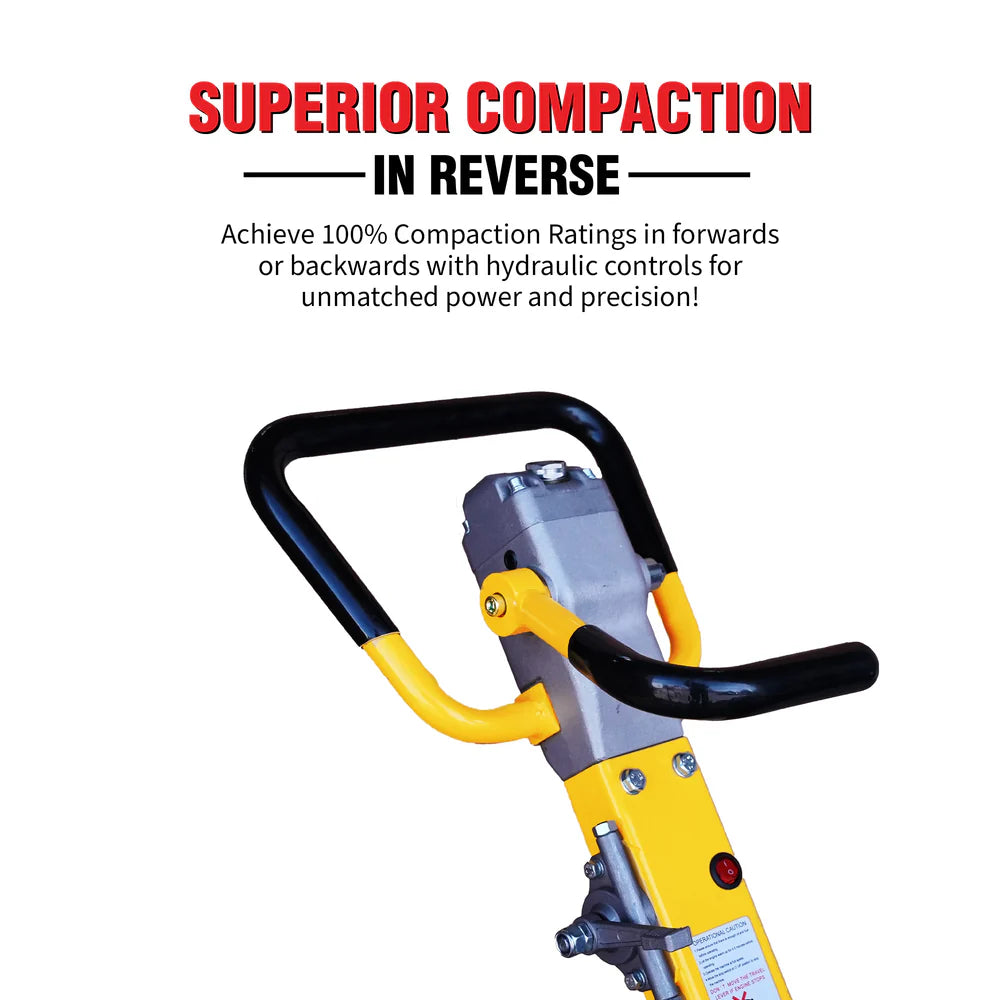

HYDRAULIC STEERLING

With hydraulic handles, maneuver cramped areas in forward or reverse - delivering power and precision!

28" x 17" STEEL BASE PLATE

Designed to maneuver narrow, cramped spaces at 65 ft/min - this plate compactor's steel plate with beveled, seamed edge is great for markless compaction - a contractor's first choice for sidewalks, driveways, and repair work.

STURDY CRATE

This is an oversized item which requires shipment on a freight truck. Once the the item reaches the carrier's destination terminal, the trucking company will call you to schedule a delivery.

TRUSTED NATIONWIDE

With long lasting materials, parts, & more – see why contractors large and small are choosing Tomahawk for their construction projects!

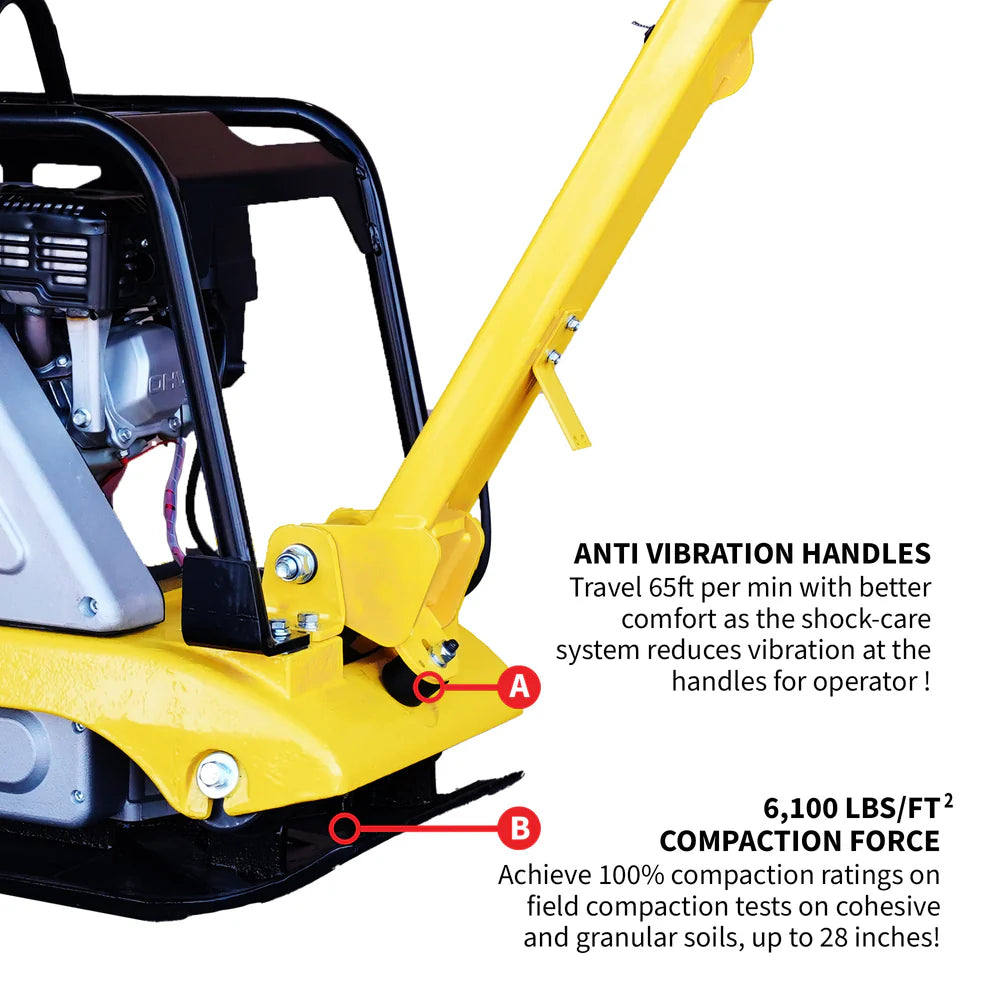

OPERATOR COMFORT

Vibration isolation mounts improve operator comfort and protect the machine by reducing the amplitude and frequency of vibrational waves.
